    Product Description

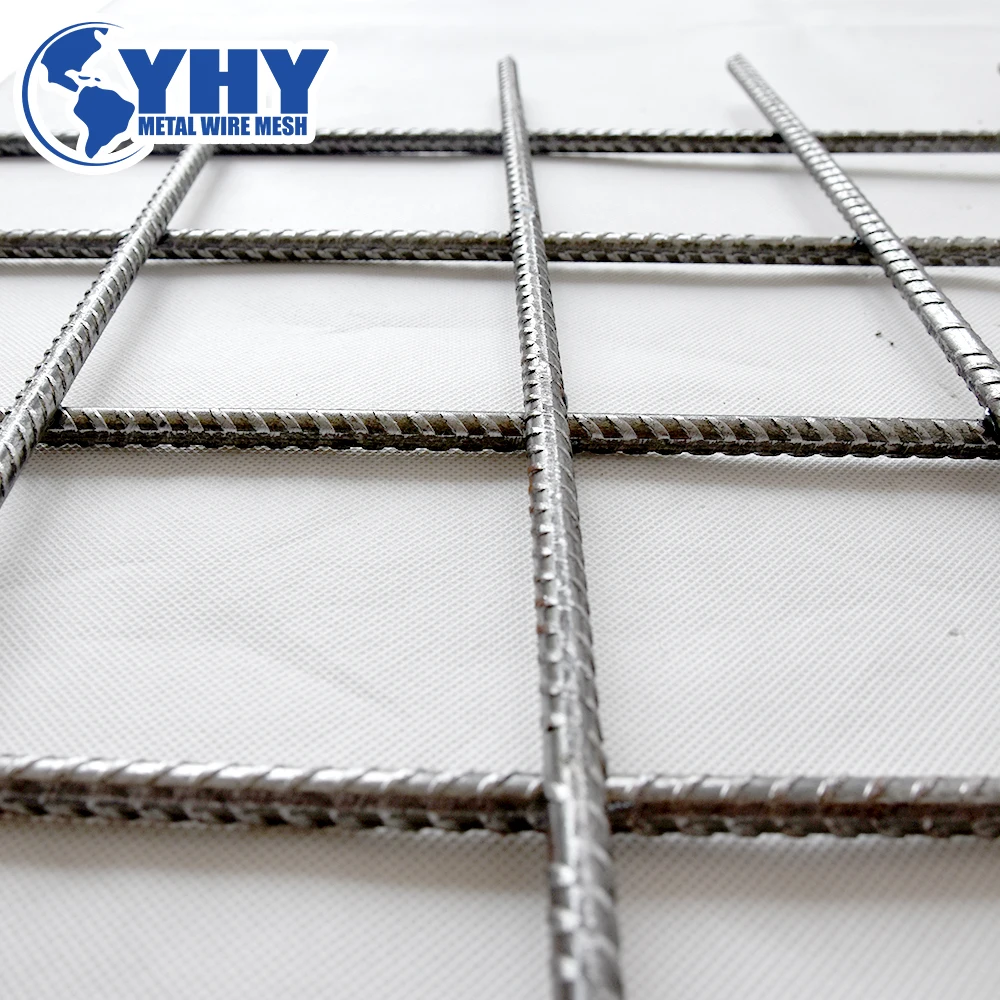

    Construction A393 Steel Mesh (ISO9001:2000)

    Welded reinforcing mesh also known as welded wire reinforcement, is a kind of mesh reinforcement. Reinforcing mesh is a high efficient, economical and flexible for concrete reinforcement, greatly save the construction time and reducing the labor force. It is widely used in road and highway construction, bridge engineering, tunnel lining, housing construction, floor, roof and walls, etc.


    Construction A393 Steel Mesh (ISO9001:2000)


    Construction A393 Steel Mesh (ISO9001:2000)

    Features of our concrete reinforcing mesh

    · The welded wire fabric makes them easier to work on.

    · There are different diameters of steel reinforcing mesh each suited for a particular application.

    · There are different designs of steel reinforcing mesh from bent and rolls to flat sheets.

    · As per BS 4482 standards and codes, the stainless steel wire used in the manufacture of the
    steel reinforcing mesh has a 510MPa tensile strength and 485MPa minimum proof stress.

    · The steel reinforcing mesh is rigid making it possible for you to control concrete cover during

    · Manufacturers produce steel reinforcing mesh under SANS1024 Standard Specifications.

    · The steel bars stay intact whenever immersed in concrete because they are carefully welded
    in mats.

    · You don’t have to apply additional surface treatment to the steel reinforcing mesh before

    · Less field labor needed when making reinforced concrete slabs using this mesh thus
    drastically speeding up the construction process.

    · The mesh is easy to load and unload, and easy to handle at the working site.

    · Properly mixed concrete is poured into the mesh and then given time to dry out. The
    concrete, as it continues to dry out, it grips the steel bars tightly creating a bond stress
    between these two materials. This bond stress is essential because it reduces bending and
    makes reinforced concrete slabs stronger.


    Construction A393 Steel Mesh (ISO9001:2000)






    Ref No. Std Unit Longitudinal Wires(mm) Cross Wire(mm) Pitch of Wire (mm) Mass(Kg) Mass(Kg/m2)
    Q131 Sheet 5 5 150x150 22.476 2.091
    Q181 Sheet 6 6 150x150 32.401 3.014
    Q221 Sheet 6.5/5.0 6.5 150x150 33.707 3.316
    Q295 Sheet 7.5/5.5 7.5 150x150 44.245 4.116
    Q378 Sheet 8.5/6 8.5 150x150 66.659 5.157


    2.Australia/New Zealand Standard AS/NZS 4671:2001(SIZE:6000X2400mm)


    Ref No.

    Std Unit



    Edge wires (mm)

    Cross Wires(mm)



    Sheet 7.6 @100 7.60 @100 7.60 @100 105
    SL102(F102) Sheet 9.5 @200 6.75 @100 9.50 @200 80
    SL92(F92) Sheet 8.6 @200 6      @100 8.60 @200 66
    SL80(F82) Sheet 7.6 @200 5.37 @100 7.60 @200 52
    SL72(F72) Sheet 6.75 @200 4.77 @100 6.75 @200 41
    SL62(F62) Sheet 6      @200 4.77 @100 6      @200 33
    SL52(F52) Sheet 4.77 @200 4.77 @100 4.77 @200 21




    Ref No. Std Unit



    Cross Wires(mm)

    Pitch of


    No. of sheet

     per ton

    A393 Sheet 10 10 200x200 15 6.16
    A252 Sheet 8 8 200x200 22 3.95
    A193 Sheet 7 7 200x200 29 3.02
    A142 Sheet 6 6 200x200 40 2.22
    A98 Sheet 5 5 200x200 57 1.54

    Construction A393 Steel Mesh (ISO9001:2000)Construction A393 Steel Mesh (ISO9001:2000)Construction A393 Steel Mesh (ISO9001:2000)Construction A393 Steel Mesh (ISO9001:2000)
