    Product Description
    hinge joint wire mesh fence / mallas ganadera ovejeras



    hinge joint wire mesh fence / mallas ganadera ovejeras



       The livestock wire fence made by mild steel wire and high tensile steel wire. Now YHY factory mainly offers two type: hinge joint knots and fix knots .

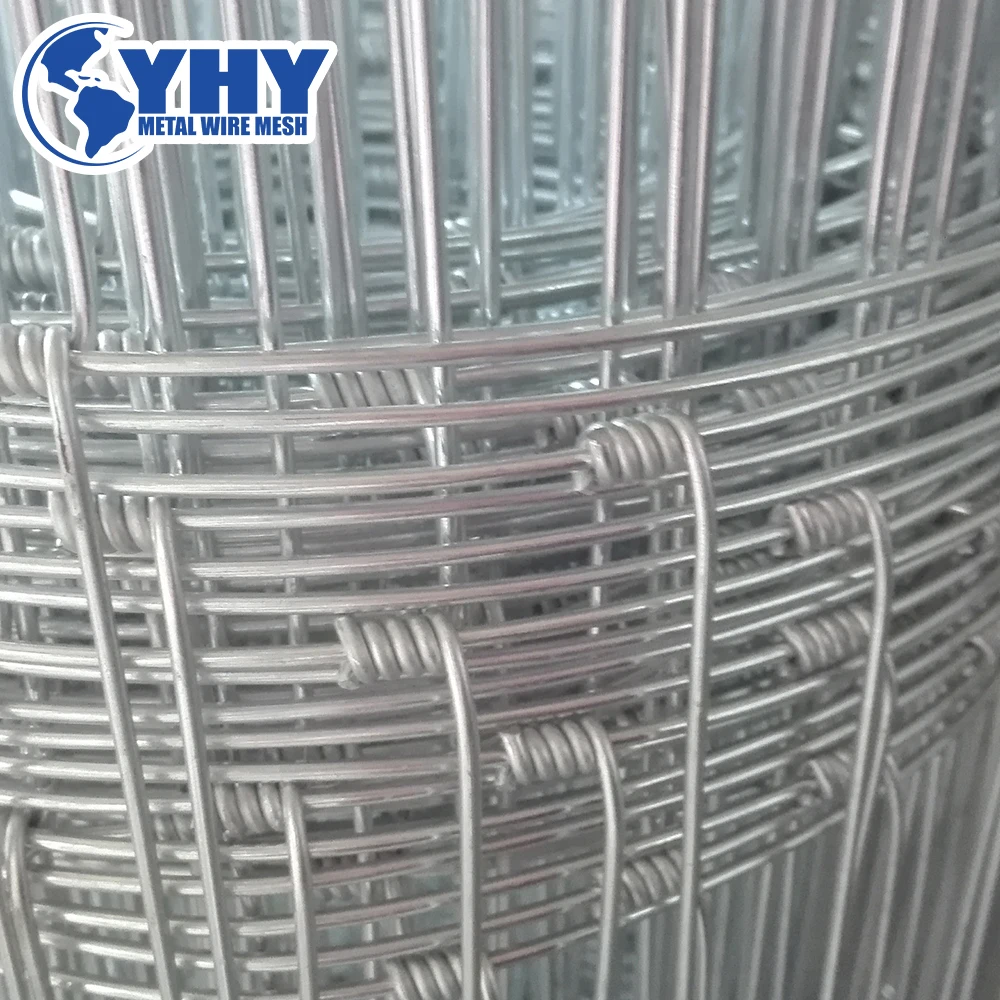

       The hinge joint knots is the most common knot in agricultural fencing. The knot is formed by wrapping the vertical stay wire pieces around the line wire at each intersection. This design can also absolve animal impact without damage and is the most economical knot choice available.

       Fixed knot field fence considered top-of-the-line as the fixed knot utilizes a separate piece of wire tightly wrapped around the line wire and stay wire, increasing the fence’s vertical strength allowing for increased post spacing and making it very resistant to animal damage.





    1. Product Description





     The livestock wire fence made by mild steel wire and high tensile steel wire. Now YHY factory mainly offers two types: hinge joint knots and fix knots.

    The hinges joint knots is the most common knot in agricultural fencing. The knot is formed by wrapping the vertical stay wire pieces around the line wire at each intersection. This design can also absolve animal impact without damage and is the most economical knot choice available.

    Fixed knot field fence considered top-of-the-line as the fixed knot utilizes a separate piece of wire tightly wrapped around the line wire and stay wire, increasing the fence’s vertical strength allowing for increased post spacing and making it very resistant to animal damage.



    hinge joint wire mesh fence / mallas ganadera ovejerashinge joint wire mesh fence / mallas ganadera ovejeras       Hinge Joint Knots   and  Fixed Knots  Fence Specification

    Height Range: 0.6 to 2.5 meter available.

    Vertical wire distance : 50, 100,150,200,250,300,350,400mm available

    Length : 50 Meter , 100 Meter and 150 Meter available .

    Wire Material Finishing: Hot Dipped Galvanized, Electro Galvanized.



    Common Specifications of Various Types Hinge Joint Filed Fence

    Hinge Joint Field
    Fence Type

    Fence Height
    (mm)

    Horizontal
    Wire Number

    Distance
    Between the
    Vertical Wire
    (mm)

    Mesh Opening Number and
    Mesh Height
    (mm)

    Roll
    Length
    (m)

    HJF 1250/15/15

    1250

    15

    150

    6-75, 8-100

    50
    100
    150

    HJF 1550/18/15

    1550

    18

    150

    6-75, 11-100

    HJF 1550/15/15

    1550

    15

    150

    11-100, 3-150

    HJF 1850/20/15

    1850

    20

    150

    6-75, 11-100, 2-150

    HJF 1850/16/15

    1850

    16

    150

    10-100, 3-150, 2-200

    HJF 2400/23/15

    2400

    23

    150

    6-75, 11-100, 3-150, 2-20











     Recommended Light Duty Hinge Mesh Types for Sheep Fencing

    Type

    Height (cm)

    Number of Horizontal
    Wire

    Distance Between
    Vertical Wire
    (cm)

    Distance Between
    Vertical Wire
    (cm)

    200/24/15

    200

    24

    15, 20, 30

    15, 20, 30

    200/20/15

    200

    20

    200/17 15

    200

    17

    148/18/15

    148

    18

    147/10/30

    147

    10

    122/9/15

    122

    9

    100/14/15

    100

    14

    100/8/15

    100

    8

    80/8/15

    80

    8

    60/6/15

    60

    6



     Product  Advantage

    hinge joint wire mesh fence / mallas ganadera ovejeras



    1) On the basis of the ordinary Field fence, an advanced pressure wave process is adopted, and one or two deep 12 mm wide and 40 mm bends are pressed on each mesh of the horizontal wire.T his kind of technology makes the mesh surface flatter and effectively enhances the elasticity of the mesh surface. It alleviates the deformation of the mesh surface caused by thermal expansion and contraction in areas with large climate change in winter and summer. Since the ripple increases the cushioning force of the mesh surface, the mesh surface can automatically return when the beast hits.



    hinge joint wire mesh fence / mallas ganadera ovejeras



    2)There are different types of the “ knot “ can be made.  We can make it according to customers request. The Hinge Joint Knots and the   Fixed Knots have difference advanced. The hinge joint knots is the most common knot in agricultural fencing.  The Fixed Knots fence increasing the fence’s vertical strength allowing for increased post spacing and making it very resistant to animal damage.

    hinge joint wire mesh fence / mallas ganadera ovejeras

    3)  The Stay wire and the Line wire can be adjusted.  It can make to be a few wires or more wires according to the farmland request.  For example, if your only for Person proof you just can choose the bigger line wire distance. If you need proof the small animals get through, then you can choose with more lines wire and the vertical wire distance can be smaller too.

    hinge joint wire mesh fence / mallas ganadera ovejeras

    4) The fence also can make custom sized, you can tell us your requirements then we can design the suitable fence for you. Please check the Photos it is the one we made for our customers from  New Zealand, they want the more strength of the edge wire, so we use the double wire to make the Edge of the field fence, it has more high tensile  avoiding  the animals attacked the fence

    hinge joint wire mesh fence / mallas ganadera ovejeras
    (1) Steel raw material suppliers from the big steel factory of China
    (2) 10 Welded machine import from Germany
    (3) Qualified and trained technical and workers
    (4) Strictly Quality Control Processing

    Anping YingHangYuan Metal Wire Mesh Co., Ltd. It is located in the largest wire mesh manufacture base in Asia, Anping County, Hebei, China. It has become a big comprehensive wire mesh company which is engaged in domestic and foreign trade. Since our international business department set up now our products are sold 50 countries and area, such as USA, Germany, Italy, Australia, and Southeast Asia etc.
    Our factory has been passed the Bureau Veritas certificated: ISO 9001: 2015 and CE certificate. We have cooperated with China big steel factory for 20 years, our steel raw material quality meets the international standard. We also can offer difference steel raw material test report.
