    Product Description

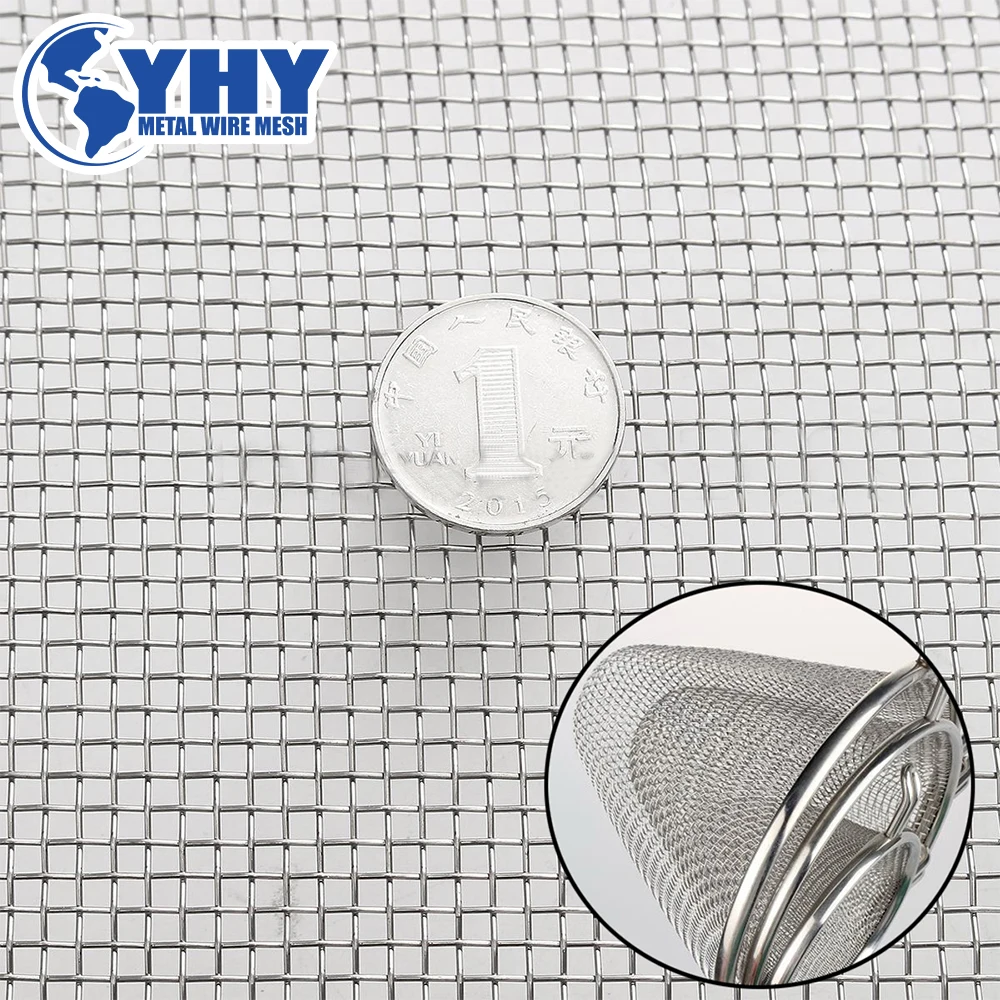

    3mm Stainless Steel Galvanized Woven Cell Wire Mesh



    Stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth.T304 is the most common, but other are used in specific applications to take advantage of each grade’s unique properties. The wire mesh made of stainless steel is extensively used in mining, chemical industry, food industry and pharmaceutical industry.

    3mm Stainless Steel Galvanized Woven Cell Wire Mesh

    1.Plain Weave: also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple cross-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.

    Stainless Steel Woven Wire Mesh(Plain Weave)

    mesh/inch

    wire diameter(mm)

    aperture(mm)

    mesh/inch

    wire diameter(mm)

    aperture(mm)

    2 mesh

    1.80

    10.90

    60mesh

    0.15

    0.273

    3 mesh

    1.60

    6.866

    70mesh

    0.14

    0.223

    4 mesh

    1.20

    5.15

    80mesh

    0.12

    0.198

    5 mesh

    0.91

    4.17

    90mesh

    0.11

    0.172

    6 mesh

    0.80

    3.433

    100mesh

    0.1

    0.154

    8 mesh

    0.60

    2.575

    120mesh

    0.08

    0.132

    10mesh

    0.55

    1.990

    140mesh

    0.07

    0.111

    12mesh

    0.50

    1.616

    150mesh

    0.065

    0.104

    14mesh

    0.45

    1.362

    160mesh

    0.065

    0.094

    16mesh

    0.40

    1.188

    180mesh

    0.053

    0.088

    18mesh

    0.35

    1.060

    200mesh

    0.053

    0.074

    20mesh

    0.30

    0.970

    250mesh

    0.04

    0.061

    26mesh

    0.28

    0.696

    300mesh

    0.035

    0.049

    30mesh

    0.25

    0.596

    325mesh

    0.03

    0.048

    40mesh

    0.21

    0.425

    350mesh

    0.03

    0.042

    50mesh

    0.19

    0.318

    400mesh

    0.25

    0.0385

    2. Twill Weave:  In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the



    3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.

    4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.

    5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.3mm Stainless Steel Galvanized Woven Cell Wire Mesh4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.

    Knowledge of Stainless Steel Material

    1. Mesh Count = 25.4mm/D+A

    2. Aperture= 25.4mm/Mesh count - Diameter

    3. % Open Area= A/(A+D)² X 100%

    4. Micron= Aperture(mm) X 1000

    5.Mesh – The number of openings per lineal inch.

    6.Aperture- The distance between two adjacent wires

    7.Diameter- The thickness of the wire before weaving

    8.% Open Area- The ratio of the area of the aperture to the area of the 9.mesh expressed in percentage terms

    10.Warp- All wires running lengthwise of the cloth as woven

    11.Weft- All wires running across the cloth as woven

    3mm Stainless Steel Galvanized Woven Cell Wire Mesh

    YHY products have been exported to 50 courtiers and area. Now our sales department have a completely sales system, we offer customers price within 8 hours, and make samples within 5 days.

    YHY People always making efforts to improve our technical and develop new products. Our target is to be the top one of metal wire mesh industry in China within 5 five years and make our customer’s satisfactions be 100%.

    3mm Stainless Steel Galvanized Woven Cell Wire Mesh

    Materials : 1.AISI:   AISI 304,AISI 304L,AISI 316,AISI 316L

                       2.T series:      T 304,T 316

                       3.SS series:    SS 410, SS 430, SS 302

                       4.SUS :           SUS 310,SUS 310L

    [Width  : 0.914m, 1m, 1.22m, 1.3m, 1.4m, 1.5m, 1.6m, 2m, 3m, 4m, 6m.

    Roll Length : 30m,30.48m or as per your request

    3mm Stainless Steel Galvanized Woven Cell Wire Mesh

    3mm Stainless Steel Galvanized Woven Cell Wire Mesh

    1. Are you a manufacturer?
     Yes, we are the ISO and CE certificated Manufacturer and our factory founded in this industry since 1989.
    2. Will your price competitive?
     Yes , we have stable and large raw material supplier ,we work with them for nearly 20 years .   Our machine and technical it is most advanced , we will send our technical to aboard to learning new technical every year.
    3.Can we have a sample ?
    Yes , if the samples it is not much big , we can offer free sample , the courier it is paid by customers.
    4.Can we visit your factory ?
    Yes , you are welcome to visit us . we can pick you up from the airport .
    5. What are the payment terms?
    We can accept TT , LC , West Union , Money Gram , Cash .
